It is developed to gain the performance of a stock engine with a Yoshimura exhaust system.
To get the full performance of Yoshimura camshafts, it is recommended to use FI adjustment tool such as BAZZAZ Z-FI, measure the valve timing and adjust tappets clearance.
Description
∗ It is required to adjust the fuel injection mapping to gain full camshaft performance.
∗ Valve timing must be measured and adjusted when installing.
∗ Tappet clearance must be measured and adjusted when installing.

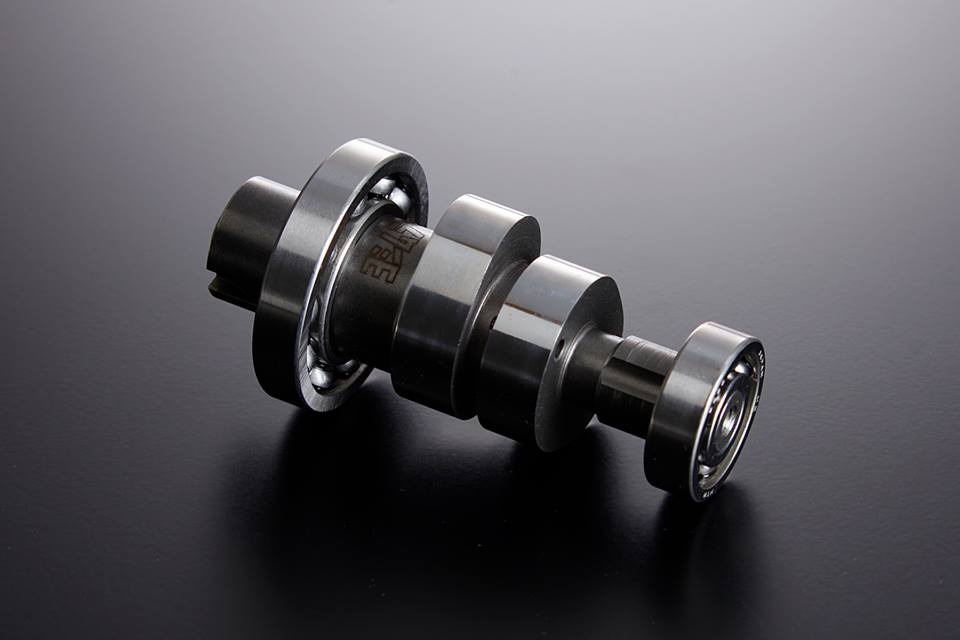

・ST-1M CAMSHAFT
Type: ST-1M
MAX LIFT(mm): IN 6.25mm/EX 6.25mm
1mm DURATION(°): IN 225°/EX 220°
Tappet Crearance(mm): IN 0.08-0.12mm/EX 0.08-0.12
[Webike Shopping]
YOSHIMURA Camshaft [ST-1M]

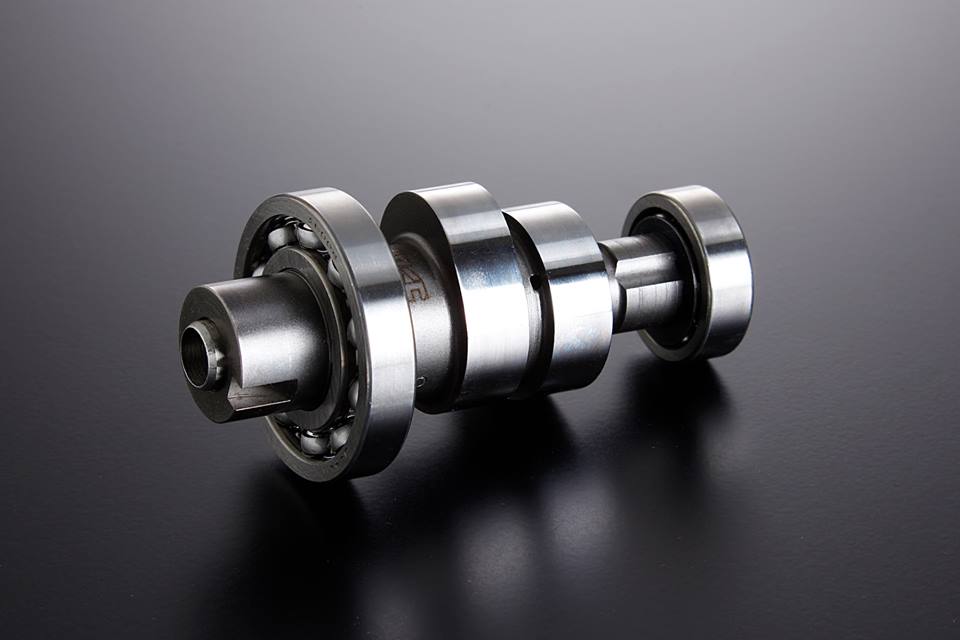

・ST-2M CAMSHAFT
Type: ST-2M
MAX LIFT(mm): IN 6.5/EX 6.5
1mm DURATION(°): IN 250/EX 250
Tappet Crearance(mm): IN 0.08-0.12/EX 0.08-0.12
[Webike Shopping]
YOSHIMURA ST-2M Camshaft
Original Source[ YOSHIMURA JAPAN FACEBOOK ]
