Honda APE100 (2007) Introduction

Honda Collection Hall Test Ride Video of HONDA APE100 (2007)

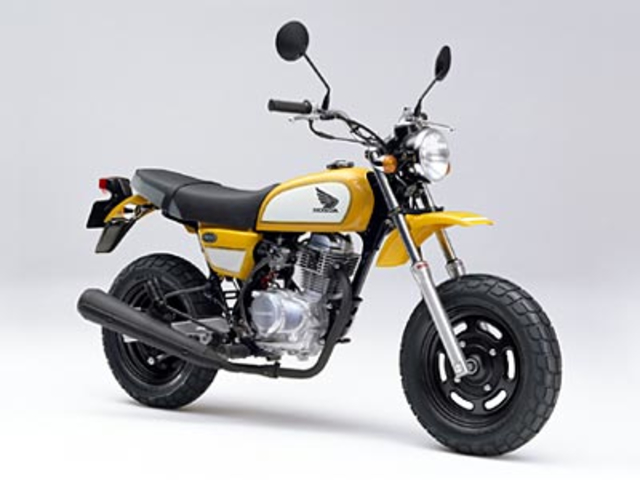

A special model with a special color on the body and wheels based on Ape 100, buffing the crankcase cover, cylinder head cover, front fork bottom case, buff finish.In this color change, we line up yellow and white with two tanks of fuel tank and side cover.Black is used for yellow car, red frame is combined with red frame, and black x gray two-tone sheet is adopted to emphasize specialty mood.In the conventional type the wheel which was gold was also changed to black.Along with this, the price increases by 5000 yen (tax excluded) of the conventional type.There is no change in the main specifications.

2006 HONDA APE100 Deluxe Specifications

MakerHonda
Engine TypeAir-cooled/4-stroke/OHC/Single Cylinder
Model nameAPE100
Engine Starting MethodKick Starter
Type · GradeDeluxe
Maximum Output (ps)7.0ps(5.1kw)/8000rpm
Engine Operation4 stroke Maximum Torque (kgf/m) 0.71kg・m(7N・m)/6500rpm
ModelHC07
Vehicle Weight (Dry Weight)82 kg
Displacement99 cc
Vehicle Weight (Curb Weight)87 kg
Release year2006
Length(mm)・Height(mm)・Width(mm)970 x 770 x 1715
Fuel Efficiency by Catalog53.2 km/L
Seat Height715 mm
Fuel Tank Capacity5.5 liters
Front Tire Indication120/80-12 55J
Fuel SupplyCarburetor
for Rear Tire Indication120/80-12 55J

2006 HONDA APE100 Deluxe Service Data

Standard PlugCR7HSA
Sprocket sizeDrive Sprocket Teeth Number 15, Driven Sprocket Teeth Number 33
Number of Used Plugs1
Chain Size420
Plug Gap0.6 - 0.7mm
Battery CodeBattery-less
Engine Oil Amount1.1
Head Light12V 30w/30w
Headlamp TypePH7
Engine Oil (Refill)0.9L
Headlamp Remarks-
Engine Oil (Element Replacement)-
Tail Light12V 10w/5wS25
Front Blinker Rating12V 10w
Rear Blinker Rating12V 10w
