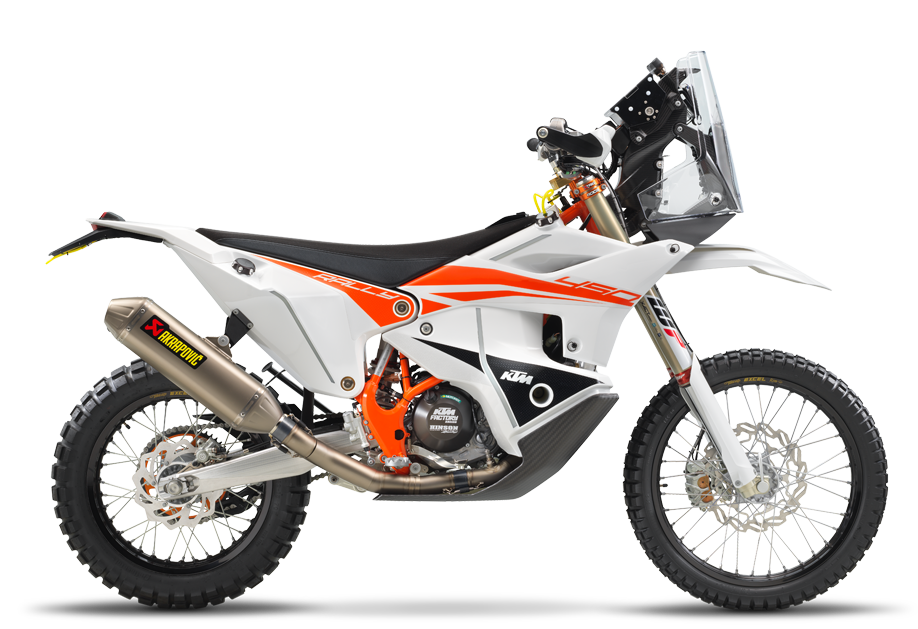

It was created as the most race-ready Rally motorcycle on the market with the input of KTM racers having experience of winning numerous rally victories and live to win. With a limited edition model, having the high-performance 450cc fuel-injected engine, race-spec chassis developed in competition, a fully adjustable shock, and premium-quality Akrapovič exhaust.
KTM 450 RALLY REPLICA FEATURES
- ENGINE & EXHAUST
- CHASSIS
- ERGONOMICS & COMFORT
- BODYWORK & GRAPHICS
The state-of-the-art Keihin Engine Management System (EMS) features a 44mm throttle body and unique injector positions for instant response and consistent performance The ECU maps are adjusted to match the airbox and cylinder head. Depending on the information received by the gear sensor, different maps provide optimal power delivery for each gear. Throttle cable mounts provide smooth cable routing and improved accessibility.
The Akrapovic exhaust is tuned to work perfectly with the previously updated engine and airbox. The silencers are shorter and placed lower to centralize mass and further improve handling.
The KTM 450 RALLY REPLICA features a high-tech lightweight trellis frame made of chrome-molybdenum steel. Optimized frame rigidity provides optimal feedback to the rider, ideal handling, and excellent straight-line stability. In addition, the 16-liter capacity fuel tank is a rear self-supporting type that also serves as a sub-frame. In total, it can hold approximately 33 liters of fuel.
KTM 450 RALLY SPECS
| ENGINE | |
|---|---|
| Transmission | 6-speed |
| Cooling | Liquid-cooled |
| Stroke | 63.4 mm |
| Bore | 95 mm |
| Clutch | Wet multi-disc clutch, hydraulically actuated |
| Displacement | 449.3 cm³ |
| Design | 1-cycinder, 4-stroke engine |
| Lubrication | Forced oil lubrication with 2 oil pumps |
| CHASIS | |
|---|---|
| Front Brake Disc Diameter | 300 mm |
| Rear Brake Disc Diameter | 240 mm |
| Chain | 5/8 x 1/4" |
| Dry Weight | 139 kg |
| Frame Design | Chrome-moly tubular space frame, powder-coated |
| Ground Clearance | 312 mm |
| Seat Height | 960 mm |
| Steering Head Angle | 62.5 ° |
| Suspension Travel (Front) | 305 mm |
| Suspension Travel (Rear) | 300 mm |
