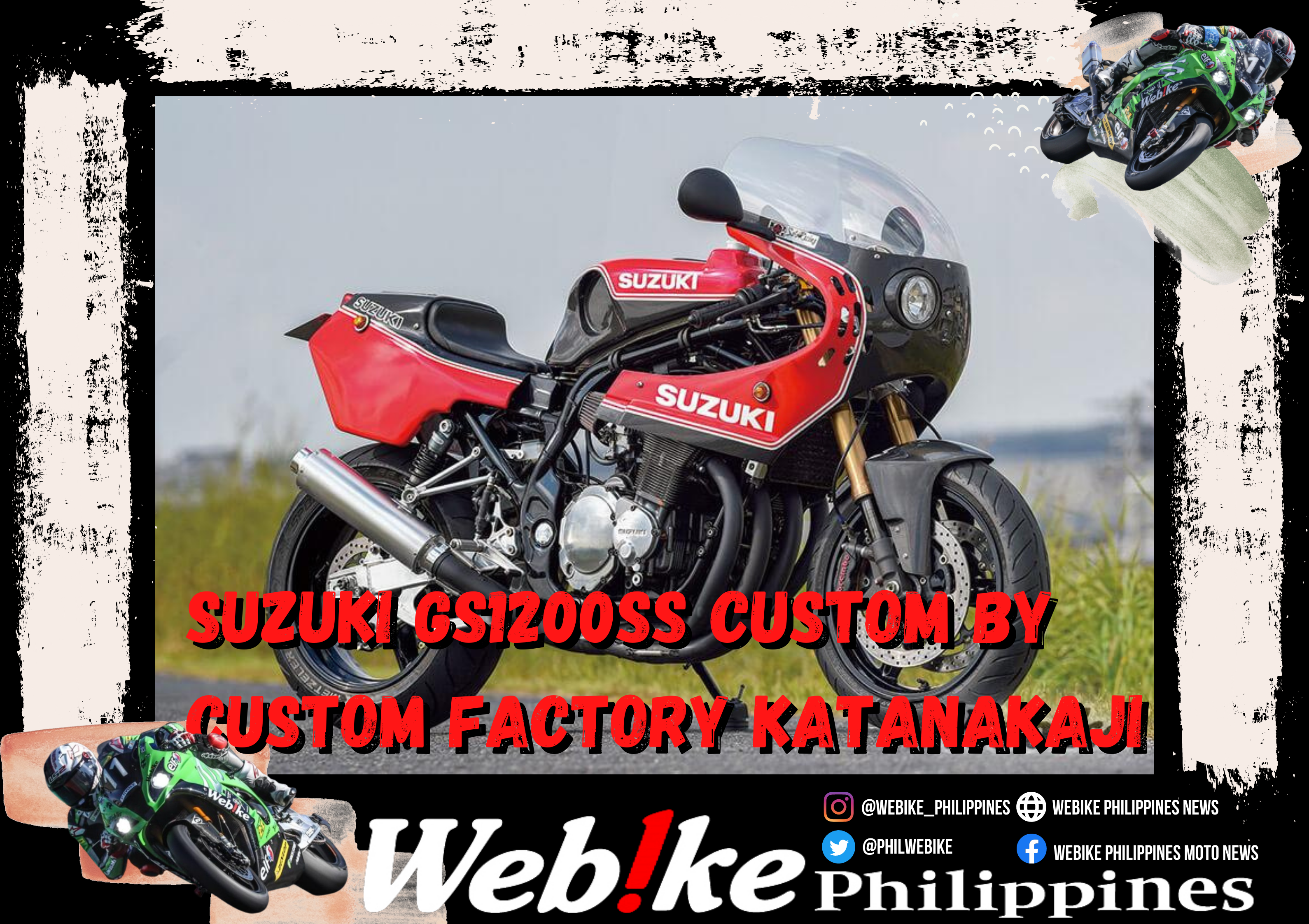

Custom Factory Katanakaji's GS1200SS
Custom Factory Katanakaji specializes in air-cooled KATANA and oil-cooled models. They have a wealth of customization abilities, which is reflected in their complete custom bikes. This custom bike is based on a Suzuki GS1200SS with Katanakaji's original "GS1000R type exterior kit" installed.
The bike presented here is a fully customized example, from the exterior to the chassis. In other words, it can be considered a sample of a further rearranged version of the full custom of GS1200SS. The arrangement includes frame reinforcement, front and rear brake and suspension modifications, and a one-off swingarm and seat. The swingarm is a one-off, and the seat is a foam-filled type, among other upgrades and modifications. However, the shape and overall feel of the bike as a complete machine should be grasped well enough. More to the point, it can be tailored in this way based on the Katanakaji Complete machine.
Handle
The front cowl and other exterior components are from the original GS1000R exterior kit from Katanakaji, and the handlebars are by BabyFace (Sato Racing). On this bike, the one-off top bridge and GSX-R1000 K5 under bracket are clamped to a fork that is a 60mm extended version of the GSX-R1000 K5 fork.
Bodyworks
The fuel tank is the aluminum inner type included in the GS1000R exterior kit, even in the standard version of their custom. The fuel tank for this bike is also one-off, but modified to be much larger capacity.
The seat cowl is also a GS1000R exterior kit. The red and black color scheme of the GS1000R was rearranged to make the black parts a carbon pattern. The seat cowl has a lid that can be opened and closed on the top side, and a box for small items can be put inside.
Engine
The engine is a stock GS1200SS, just like the standard version of their full custom. The intake and exhaust systems have been changed to FCR Φ39mm power filter specs and original Katanakaji exhaust.
Katanakaji one-off oil catch tank was also added to the left side of the engine, fulfilling the GS1000R's endurance racer appearance and function.
Chassis
The frame is reinforced between the seat rail and main loop as well as the subframe, and the rear shocks are lay-down processed.
The front forks were changed from upright to inverted by adopting from GSX-R1000 K5. The front calipers were also changed to Brembo radials, and the front fenders were changed to carbon. The standard suspension and frame for the complete machine are the GS1200SS OEM.
The front and rear wheels are from the GSX-R1000 K1 and are 3.50-17 and 6.00-17 size, while the rear shocks are a custom-made by NITRON without a reservoir with lay-down processing. The rearsets designed minimal style and aluminum swingarm with stabilizer added to the GS1000R are also one-off items made by Katanakaji.
Gallery
| | |
| | |
| | |
|
Specifications
| Part | Details |
|---|---|
| Engine | KATANAKAJI Oil Catch Tank |
| Carb / Intake | JB-POWER FCR Φ39mm carburetor |
| Exhaust | KATANAKAJI Original Exhaust |
| Frame | KATANAKAJI Frame Reinforcement / Rear Shock Lay Down Processing KATANAKAJI One-off Aluminium Swingarm |
| Brake | GSX-R1000 K5 OEM NISSIN Radial Master Cylinder GSX-R1000 L3 OEM Brembo Radial Cast Caliper GSX-R1000 OEM Caliper KATANAKAJI One-off Caliper Support |
| Wheels | GSX-R1000 K1 OEM Front Wheel 3.50-17 GSX-R1000 K1 OEM Rear Wheel 6.00-17 |
| Suspension | GSX-R1000 K5 OEM Inverted Front Forks Extend Processing NITRON Order Made Rear shocks without Reservoir tank |
| Steps | KATANAKAJI One-off Rearsets |
| Drive System | AFAM Aluminium Rear Sprocket |
| Handle / Steering | KATANAKAJI One-off Top Bridge GSX-R1000 K5 OEM Under Bracket BABYFACE RaceConcept Handlebar Kit Flat Type Short offset YOSHIMURA Digital Multi Meter |
| Seat | KATANAKAJI One-off Seat |
| Bodyworks | KATANAKAJI Body Kit GS1000R Type KATANAKAJI One-off Large Capacity Aluminium Inner Tank |
