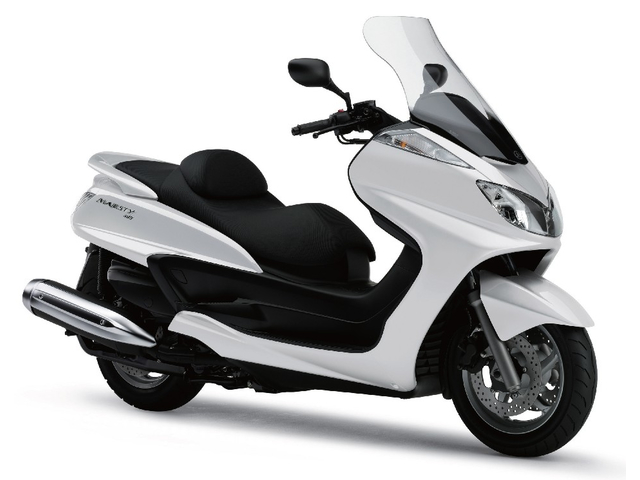

Model Name:GRAND MAJESTY 400
Manufacturer:YAMAHA
Model Year:2005
It was the 400cc specification model which became the base model of the GRAND MAJESTY. The powerful engine easily dragged the highly comfortable and stable vehicle body.
Specifications:
[Basic spec]
| Manufacturer | YAMAHA | Engine Type | Water-Cooled 4 Stroke DOHC 4-Valve |
|---|---|---|---|
| Model Name | GRAND MAJESTY 400 | Starter | Self Starter |
| Grade | - | Maximum Output (ps) | 33ps(24kw)/7250rpm |
| Drive Train | - | Maximum Torque (kgf/m) | 3.5kg-m(34N-m)/6000rpm |
| Model Type | SH04J | Curb Weight | 219 |
| Displacement | 394 | Dry Weight | 203 |
| Sales Launch Year | 2005/9 | Fuel Efficiency by Catalog | 30.0 km/L (at 60 km/h) |
| Height/Width/Length | 1380/120/2230 | Fuel Tank Capacity | 14 |
| Seat Height | - | Distance to Empty | - |
| Front Tire Indication | 120/80-14 58S | Fuel Supply | Injection |
| Rear Tire Indication | 150/70-13 64S |
[Service data]
| Standard Plug | CR7E | Chain Size | - |
|---|---|---|---|
| Number of Used Plugs | 1 | Chain Link Number | - |
| Engine Oil Amount | 1.7 | Battery Code | GT9B-4 |
| Engine Oil (Refill) | 1.5L | Headlight | 12V 60w/55w |
| Engine Oil (Element Replacement) | 1.7L | Headlight Type | H4 |
| Front Blinker Rating | 12V 21w | Headlight Remarks | - |
| Drive Sprocket Teeth Number | - | Tail Light Rating | - |
| Driven Sprocket Teeth Number | - | Rear Blinker Rating | 12V 21w |
[Machine detail]
| Motor Model Code | H320E | Caster Angle | 27.0 Degrees |
|---|---|---|---|
| Bore (mm) | 83 | Trail (mm) | 100 |
| Storke (mm) | 73 | Minimum Ground Clearance | 120 |
| Compression Ratio | 10.6 | Distance Between Axes | 1565 |
| Ignition Method | TCI | Streering Angle (Right) | - |
| Engine Lubrication Type | Compulsory Force Feeding Wet Sump | Turning Angle (Left) | - |
| Frame Type | Backbone | Mirror Screw Hole Diameter | 10mm |
| Minimum Rotaion Radius | 2.6 | Fuel Tank Reserve Capacity | - |
[Underbody detail]
| Front Brake Type | Hydraulic Double Disc | Suspension Type (Rear) | Unit Swing Type |
|---|---|---|---|
| Front Brake Remarks | - | Number of Rear Shock Absorbers | - |
| Rear Brake Type | Hydraulic Single Disc | Rear Suspension Stroke | - |
| Rear Brake Remarks | - | Rear Wheel Travel | - |
| Suspension Type (Front) | Telescopic | ABS | - |
| Front Fork Type | - | Drive Train | Belt Drive |
| Front Suspension Stroke | - | Differential Oil Amount | - |
| Front Fork Diameter | - | Chain Remarks | Belt Drive |
[Equipment]
| Seat Lowering Allowance | - | Theft Prevention Device | - |
|---|---|---|---|
| Mirror Screw Hole Diameter | 10mm | Tail Light Bulb Type | - |
| Mirror Remarks | Use screw type mirror or reverse screw adapter. | Tail Light Base Shape | - |
| Electronic Device Remarks | - | Tail Light Base Shape 2 | - |
| Fuel Gauge | - | Tail Light Remarks | LED |
| Clock | - | Front Blinker Bulb Type | S25 |
| Hazard | - | Front Blinker Base Shape | - |
[Engine detail]
| Clutch Type | Dry, Internal Expanding Weight Type | Tappet Clearance (mm) EX | - |
|---|---|---|---|
| Transmission | V-belt Type Continuously Variable | Idling Initial Value (rpm) | - |
| Number of Gears | - | Needle Steps (Clip Location) | - |
| Gear Ratio | - | Float Level (mm) | - |
| Primary Reduction Ratio | 1 | Air Screw Return | - |
| Secondary Reduction Ratio | 5.812 | Main Jet Type | - |
| Variable Speed Vehicle Gear Ratio | 2.380 - 0.892 | Main Jet Number | - |
| Tappet Clearance (mm) IN | - |
[Other spec]
| Clutch Cable Length | - | Rear Brake Cable Length | - |
|---|---|---|---|
| Choke Cable Length | - | Other Cables | - |
| Meter Cable Length | - | Engine Number (Production Launch) | - |
| Throttle Cable Length | - | Engine Number (Production End) | - |
| Front Brake Cable Length | - |
