Model Name:CB500F
Manufacturer:HONDA
Model Year:2015

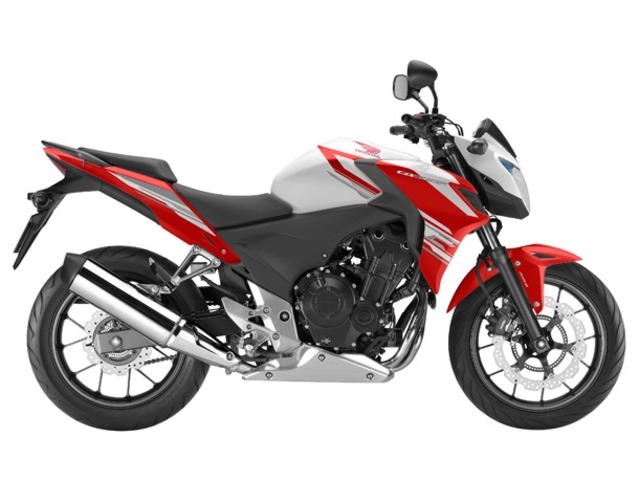

CB500F has been known in Europe as a familiar middle-sized sport motorcycle that's also good for beginner riders. The 400cc version of this model is for the Japanese market. Its conservative design includes its basic pipe raise-type handlebar and its easy-to-handle parallel 2-cylinder engine. It has a sharp look of a contemporary model, and its headlight is mounted on its mini cowl. Its side cowl looks sharp too. New two graphic colors were added from its MY15 model.
Specifications:
[Basic spec]
| Manufacturer | HONDA | Engine Type | Water-Cooled Parallel 2 Cylinder |
|---|---|---|---|
| Model Name | CB500F | Starter | - |
| Grade | - | Maximum Output (ps) | - |
| Drive Train | - | Maximum Torque (kgf/m) | - |
| Model Type | - | Curb Weight | 190 |
| Displacement | 471 | Dry Weight | - |
| Sales Launch Year | 2015/0 | Fuel Efficiency by Catalog | 27km/L (76.3mpg - WMTC mode**) |
| Height/Width/Length | 1060/155/2075 | Fuel Tank Capacity | 15.7 |
| Seat Height | 790 | Distance to Empty | - |
| Front Tire Indication | 120/70-ZR17 | Fuel Supply | PGM-FI |
| Rear Tire Indication | 160/60-ZR17 |
[Service data]
| Standard Plug | - | Chain Size | - |
|---|---|---|---|
| Number of Used Plugs | - | Chain Link Number | - |
| Engine Oil Amount | 3.2 | Battery Code | 12V/8.6AH |
| Engine Oil (Refill) | - | Headlight | - |
| Engine Oil (Element Replacement) | - | Headlight Type | - |
| Front Blinker Rating | - | Headlight Remarks | - |
| Drive Sprocket Teeth Number | - | Tail Light Rating | - |
| Driven Sprocket Teeth Number | - | Rear Blinker Rating | - |
[Machine detail]
| Motor Model Code | - | Caster Angle | 25.5 |
|---|---|---|---|
| Bore (mm) | 67 | Trail (mm) | 102.6 |
| Storke (mm) | 66.8 | Minimum Ground Clearance | 155 |
| Compression Ratio | 10.7 | Distance Between Axes | 1410 |
| Ignition Method | - | Streering Angle (Right) | - |
| Engine Lubrication Type | - | Turning Angle (Left) | - |
| Frame Type | Diamond/Backbone Frame/Twin Spar | Mirror Screw Hole Diameter | - |
| Minimum Rotaion Radius | - | Fuel Tank Reserve Capacity | - |
[Underbody detail]
| Front Brake Type | Single Disc | Suspension Type (Rear) | - |
|---|---|---|---|
| Front Brake Remarks | - | Number of Rear Shock Absorbers | 1 |
| Rear Brake Type | Disc | Rear Suspension Stroke | - |
| Rear Brake Remarks | - | Rear Wheel Travel | - |
| Suspension Type (Front) | Telescopic | ABS | - |
| Front Fork Type | Upright Fork | Drive Train | Chain |
| Front Suspension Stroke | - | Differential Oil Amount | - |
| Front Fork Diameter | - | Chain Remarks | - |
[Equipment]
| Seat Lowering Allowance | - | Theft Prevention Device | - |
|---|---|---|---|
| Mirror Screw Hole Diameter | - | Tail Light Bulb Type | - |
| Mirror Remarks | - | Tail Light Base Shape | - |
| Electronic Device Remarks | - | Tail Light Base Shape 2 | - |
| Fuel Gauge | - | Tail Light Remarks | - |
| Clock | Available | Front Blinker Bulb Type | - |
| Hazard | - | Front Blinker Base Shape | - |
[Engine detail]
| Clutch Type | Wet Type | Tappet Clearance (mm) EX | - |
|---|---|---|---|
| Transmission | Normal Shift | Idling Initial Value (rpm) | - |
| Number of Gears | 6 | Needle Steps (Clip Location) | - |
| Gear Ratio | - | Float Level (mm) | - |
| Primary Reduction Ratio | - | Air Screw Return | - |
| Secondary Reduction Ratio | - | Main Jet Type | - |
| Variable Speed Vehicle Gear Ratio | - | Main Jet Number | - |
| Tappet Clearance (mm) IN | - |
[Other spec]
| Clutch Cable Length | - | Rear Brake Cable Length | - |
|---|---|---|---|
| Choke Cable Length | - | Other Cables | - |
| Meter Cable Length | - | Engine Number (Production Launch) | - |
| Throttle Cable Length | - | Engine Number (Production End) | - |
| Front Brake Cable Length | - |
